| No. | Code | Size (+- 3%) mm | Pallet Weight (+- 5%) Kgs. Without Steel | Pallet Weight (+- 5%) Kgs. With Steel | Steel Reinforced (BARS) | Loading Capacity (Ton) | |||||
| STATIC | DYN | RACKING | |||||||||
| 1 | V-9R-OTI-1008(15) | 1000 | 800 | 15 | 8.1 | 10.1 | 4 | 4 | 1 | x | |
| 2 | V-9R-OTI-1010(15) | 1000 | 1000 | 15 | 8.7 | 11.2 | 4 | 4 | 1 | x | |
| 3 | V-9R-OTI-1109(15) | 1100 | 900 | 15 | 9.15 | 11.7 | 4 | 4 | 1 | x | |
| 4 | V-9R-OTI-1111(14.5) | 1100 | 1100 | 14.5 | 13.3 | 16.3 | 4 | 4 | 1 | x | |
| 5 | V-9R-OTI-1208(14.5) | 1200 | 800 | 14.5 | 11 | 14 | 4 | 4 | 1 | x | |
| 6 | V-9R-OTI-1210(13.5) | 1200 | 1000 | 13.5 | 10.5 | 13.5 | 4 | 4 | 1 | x | |
| 7 | V-9R-OTI-1210(14.5) | 1200 | 1000 | 14.5 | 12.8 | 15.8 | 4 | 4 | 1 | x | |
| 8 | V-9R-OTI-1211(13.5) | 1200 | 1100 | 13.5 | 14.8 | 17.8 | 4 | 4 | 1 | x | |
| 9 | V-9R-OTI-1212(13.5) | 1200 | 1200 | 13.5 | 12 | 15 | 4 | 4 | 1 | x | |
| 10 | V-9R-OTI-1212(14.5) | 1200 | 1200 | 14.5 | 15.2 | 18.7 | 4 | 4 | 1 | x | |
| 11 | V-9R-OTI-1311(14.5) | 1300 | 1100 | 14.5 | 14.7 | 18.2 | 4 | 4 | 1 | x | |
| 12 | V-9R-OTI-1313(14.5) | 1300 | 1300 | 14.5 | 15.9 | 20.5 | 4 | 4 | 1 | x | |
| 13 | V-9R-OTI-1411(14.5) | 1400 | 1100 | 14.5 | 17.7 | 21.4 | 4 | 4 | 1 | x | |
| 14 | V-9R-OTI-1412(14.5) | 1400 | 1200 | 14.5 | 18.9 | 22.9 | 4 | 4 | 1 | x | |
| 15 | V-9R-OTI-1414(14) | 1400 | 1400 | 14 | 17.8 | 23.3 | 4 | 4 | 1 | x | |
| 16 | V-9R-OTI-1414(14.5) | 1400 | 1400 | 14.5 | 20.3 | 24.3 | 4 | 4 | 1 | x | |

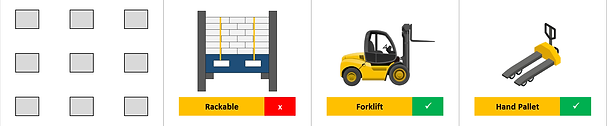

Grid 9 Runners One Time Injection(OTI)
Product Features:
