| No. | Code | Size (+- 3%) mm | Pallet Weight (+- 5%) Kgs. Without Steel | Pallet Weight (+- 5%) Kgs. With Steel | Steel Reinforced (BARS) | Loading Capacity (Ton) | |||||
| STATIC | DYN | RACKING | |||||||||
| 1 | F-9R-OTI-1008(15) | 1000 | 800 | 15 | 8.7 | 9.7 | 4 | 4 | 1 | x | |
| 2 | F-9R-OTI-1010(15) | 1000 | 1000 | 15 | 9.9 | 12.4 | 4 | 4 | 1 | x | |
| 3 | F-9R-OTI-1109(15) | 1100 | 900 | 15 | 10.8 | 13.3 | 4 | 4 | 1 | x | |
| 4 | F-9R-OTI-1111(14.5) | 1100 | 1100 | 14.5 | 14.6 | 17.1 | 4 | 4 | 1 | x | |
| 5 | F-9R-OTI-1208(15) | 1200 | 800 | 15 | 10.9 | 13.9 | 4 | 4 | 1 | x | |
| 6 | F-9R-OTI-1210(13.5) | 1200 | 1000 | 13.5 | 12 | 15 | 4 | 4 | 1 | x | |
| 7 | F-9R-OTI-1210(14.5) | 1200 | 1000 | 14.5 | 14.5 | 15.7 | 4 | 4 | 1 | x | |
| 8 | F-9R-OTI-1211(14) | 1200 | 1100 | 14 | 15.3 | 18.3 | 4 | 4 | 1 | x | |
| 9 | F-9R-OTI-1212(13.5) | 1200 | 1200 | 13.5 | 13.5 | 16.5 | 4 | 4 | 1 | x | |
| 10 | F-9R-OTI-1212(14.5) | 1200 | 1200 | 14.5 | 16.7 | 19.7 | 4 | 4 | 1 | x | |
| 11 | F-9R-OTI-1311(14.5) | 1300 | 1100 | 14.5 | 17.35 | 20.4 | 4 | 4 | 1 | x | |
| 12 | F-9R-OTI-1313(13) | 1300 | 1300 | 13 | 17.2 | 21.8 | 4 | 4 | 1 | x | |
| 13 | F-9R-OTI-1411(14.5) | 1400 | 1100 | 14.5 | 22.2 | 25.9 | 4 | 4 | 1 | x | |
| 14 | F-9R-OTI-1412(14) | 1400 | 1200 | 14 | 21 | 26.2 | 4 | 4 | 1 | x | |
| 15 | F-9R-OTI-1414(14) | 1400 | 1400 | 14 | 24 | 29.2 | 4 | 4 | 1 | x | |
| 16 | F-9R-OTI-1616(13.5) | 1600 | 1600 | 13.5 | 24.5 | 30.2 | 4 | 4 | 1 | x | |

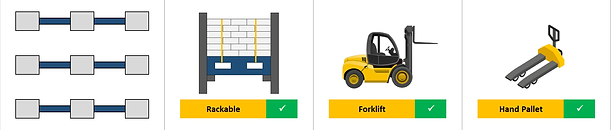

Flat 9 Runners -One Time Injection
Product Features:
